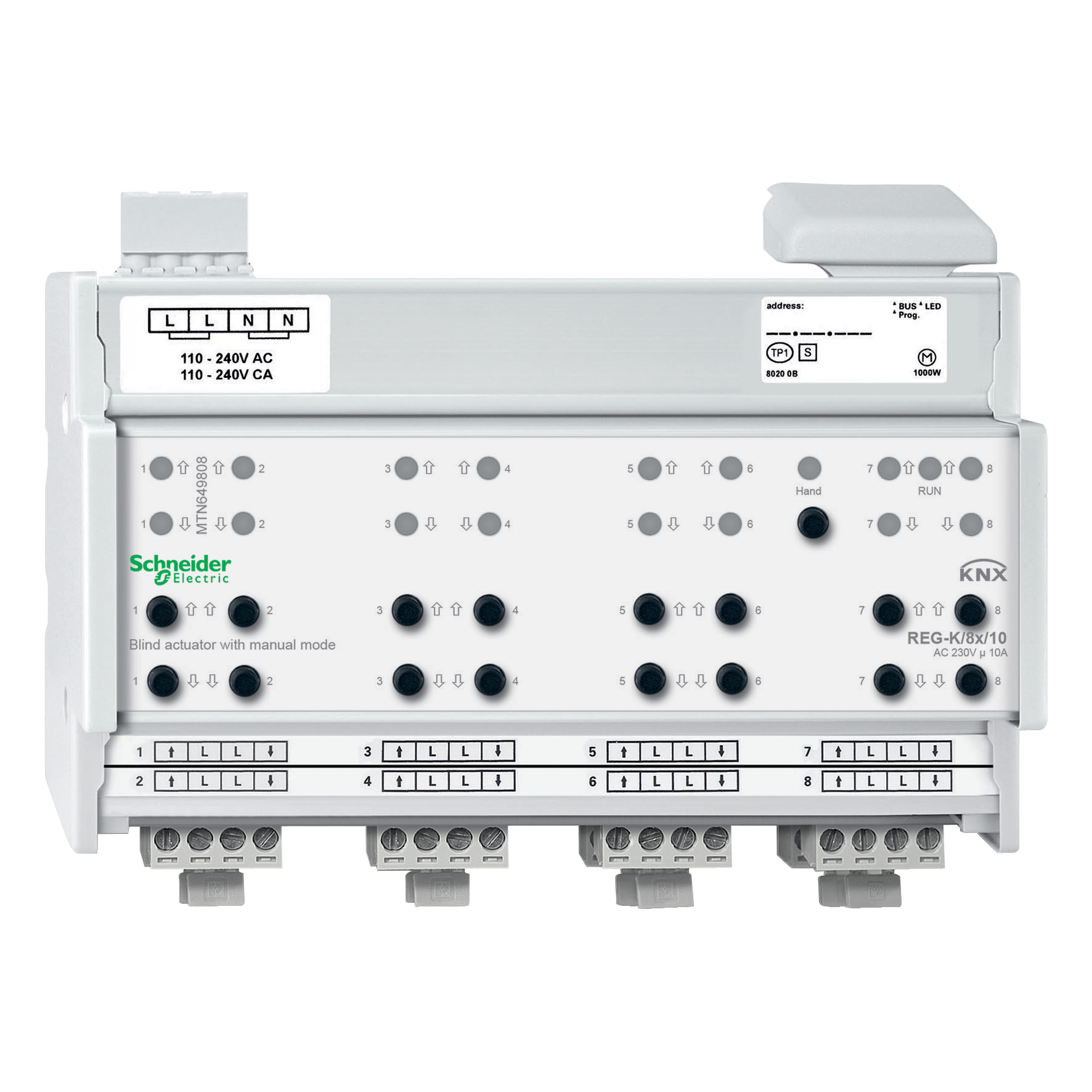

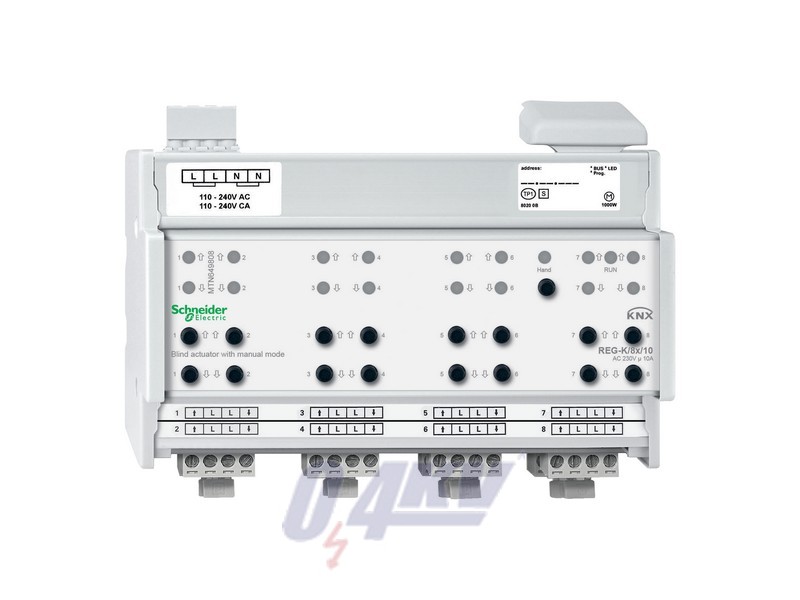

KNX blind actuator REG-K/8x/10 with manual mode. For independent control of 8 blind/roller shutter drives. The function of the blind channels is freely configurable. All blind outputs can be operated manually using push-button operation. Channel status display via LEDs. A green LED indicates readiness for operation. With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. A data rail is not necessary. KNX software functions: Blind functions: Blind type. Running time. Idle time. Step interval. Differentiated disable functions and weather alarms. 8-bit positioning for height and slat. Scenes. Manual/automatic mode. Differentiated status and status feedback functions. For each blind output: Nominal voltage: AC 230 V, 50 - 60 Hz. Nominal current:10 A, cos Phi 0.6. Motor load: AC 230 V, max. 1000 W. External auxiliary voltage (optional): AC 110-240 V, 50-60 Hz, max. 2 VA Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.
