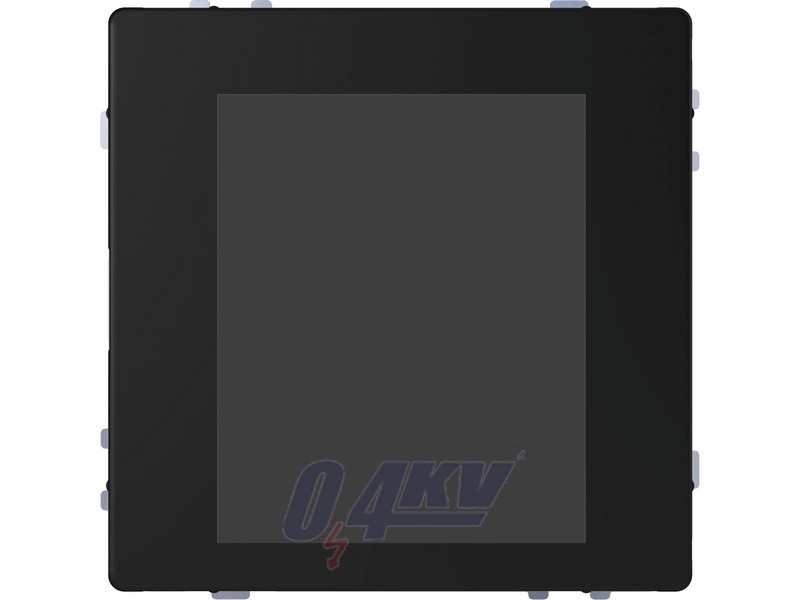

KNX Multitouch Pro. For System Design. Comfortable room controller for controlling up to 32 room functions and the room temperature. All functions are displayed on a touch screen and are called up using simple finger movements. The user chooses from 3 interface designs that can be freely assigned to the room functions. The room temperature control can be shown in 2 different designs. With room temperature control unit, display and connection for the remote sensor. The room temperature control unit can be used for heating and cooling with infinitely adjustable KNX valve drives or to trigger switch actuators and heating actuators. ETS device functions: Switch-on behaviour of the user interface. Proximity function: The display and the start screen only become visible when approached. Gesture function: The device recognises a gesture (horizontal or vertical swipe movement) and triggers a function. In this way, the light can be switched on when you enter the room, for example. Cleaning mode: For a specific period of time, neither touches nor gestures are detected. Adjusting the background lighting. Setting the screen saver. With integrated bus coupler. The bus is connected using a bus connecting terminal. KNX software functions: Control unit/push-button: Switching, toggling, dimming (single/dual-surface), blind (single/dual-surface). Pulse edges trigger 1-, 2-, 4- or 8-bit telegrams, pulse edges with 2-byte telegrams, 8-bit linear regulator, scene retrieval, scene saving, signal function, fan control, operating modes. Setpoint adjustment. Functions of the room temperature control unit: Controller type: 2-step controller, continuous-action PI control, switching PI control (PWM). Output: continuous in the range 0 to 100% or switching ON/OFF. Controller mode: Heating with one controller output. Cooling with one controller output. Heating and cooling with separate controller outputs. 2-step heating with 2 control outputs. 2-step cooling with 2 control outputs. 2-step heating and cooling with 4 control outputs. Operating modes: Comfort, comfort extension, standby (ECO), night reduction, frost/heat protection. Move all setpoints. Save all setpoint temperatures and operating modes when reset. External temperature monitoring. Additional output of the control value as 1 byte value on the PWM. Signal function for the actual temperature, valve protection function. Scene function. Operation: Touch display. Note: Programmable with ETS4 and higher. Contents: With bus connecting terminal and supporting plate.
