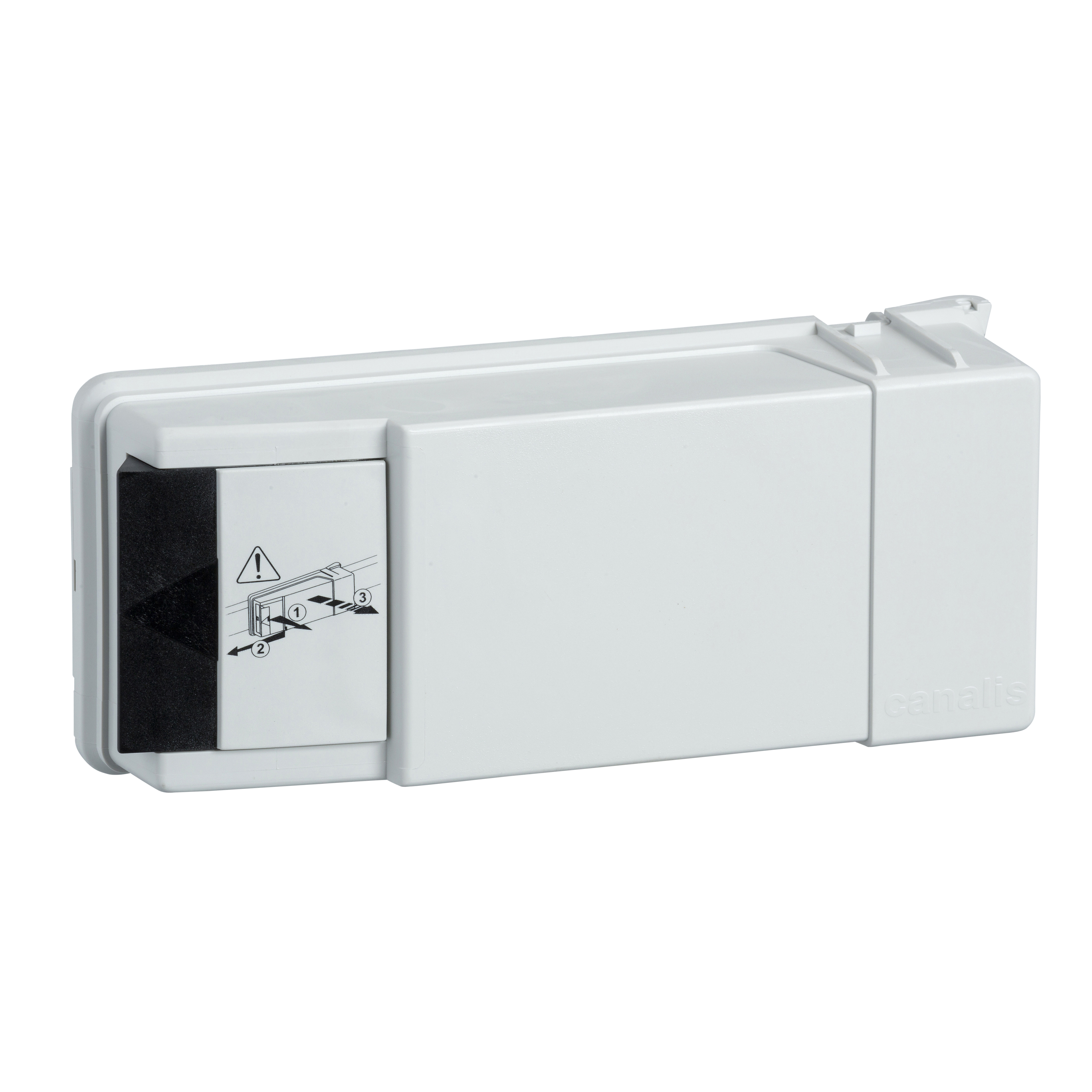

Canalis tap-off unit for KBA and KBB. It applied to lighting with cream RAL 9001 surface treatment. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. The rated operational current is 16A at 35 ℃. It provided L2 + L1 + L3 + PE busbar trunking polarity, 3L+N+PE tap-off unit polarity and fixed polarity connector. It provides IP55 protection which conforming to IEC 60529 standard. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
