Listaár: 4 614 Ft
Cikkszám: EPH1300371
Készleten 12 db

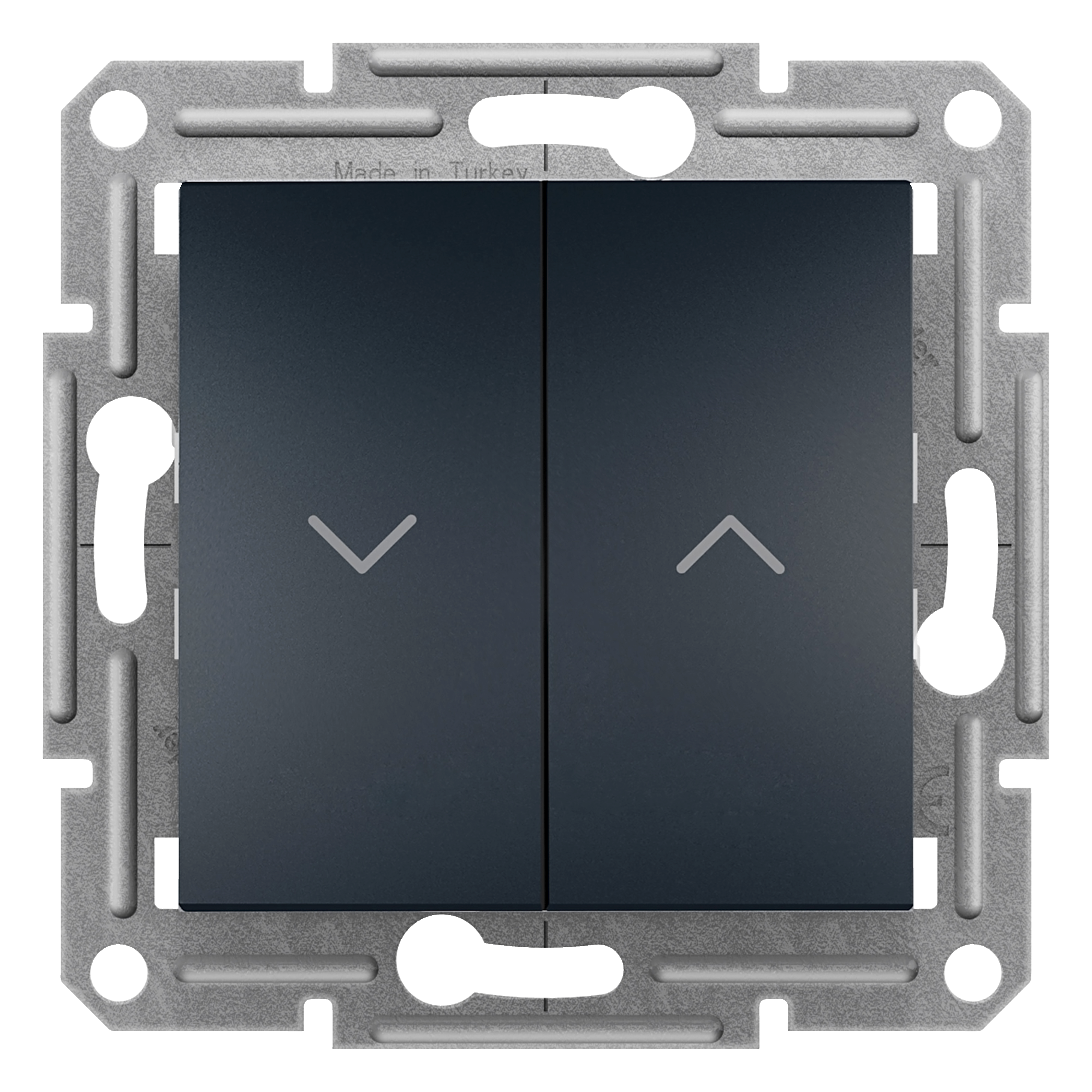

Gyártó: SCHNEIDER Adatlap: Gyártó weboldala Megnevezés: ASFORA Redőnynyomó, csavaros bekötés, antracit Csoport: Háztartási kapcsoló készülékek Osztály: Redőnymozgató nyomógomb/kapcsoló (EC000044 - ETIM-7.0)
Amennyiben kérdése van, kérjük keresse kollégánkat!
Megosztás:
Összeállítás betét központi fedéllel
Kivitel egyéb
Pólusszám 1.0
Kezelési mód billentyű
Elektromos és mechanikus reteszelés hamis
Mechanikusan kezelhető hamis
Elektronikusan vezérelhető igaz
Szerelési mód süllyesztett
Anyaga műanyag
Anyagminőség termoplaszt
Halogénmentes igaz
Felület kezeletlen
Rögzítési mód karmos és csavaros
Szín antracit
Átlátszó hamis
Felirati címke/információ felület igaz
Alkalmas (IP) védettségre IP20
Névleges áram 10 A
Névleges feszültség 250 V
Billentyűk száma 2

Schneider Electric Asfora push-button switch EPH1300371 is a mechanism with fixing frame in color anthracite with 3 rockers. This is a roller blind push-button. Its fixing mode is screws or claws. And the rated current of this push-button is 10A, with the power range of 2300W. 71 mm, 71 mm and 43 mm are the width, height and depth respectively, with a projecting depth of 15 mm. The device box can be recessed into the surface with flush mounting type. The painted surface finish helps gain this device aesthetic point, at the same time makes it exceptional wear and corrosion resistant. It reaches IP20 degree of protection too. The connection terminals of this push-button are lift terminals. Being made of ABS (acrylonitrile butadiene-styrene) material, this switch is very reliable and resistant. With conductor material of copper, this switch is quite resistant. It obtained the VDE certificate as well. The standard of IEC 60669-1 is well satisfied. Also, it has the quality label of CE. Being environmentally friendly, this push-button is a green premium product too. And it is mercury free and heavy metal free, being environment-friendly as always. The updated Asfora switches now feature smaller, more compact inserts, a profiled fixing frame, improved wire inlets and release buttons, profiled claws with a return spring, improving the quality and functionality of this push-button. This push-button will help you get the most out of your home interiors with modern stylish design for each room and each time of day. Asfora products are made from high-quality materials that won't yellow over time. The sleek, elegant design harmonizes perfectly with virtually any interior.
