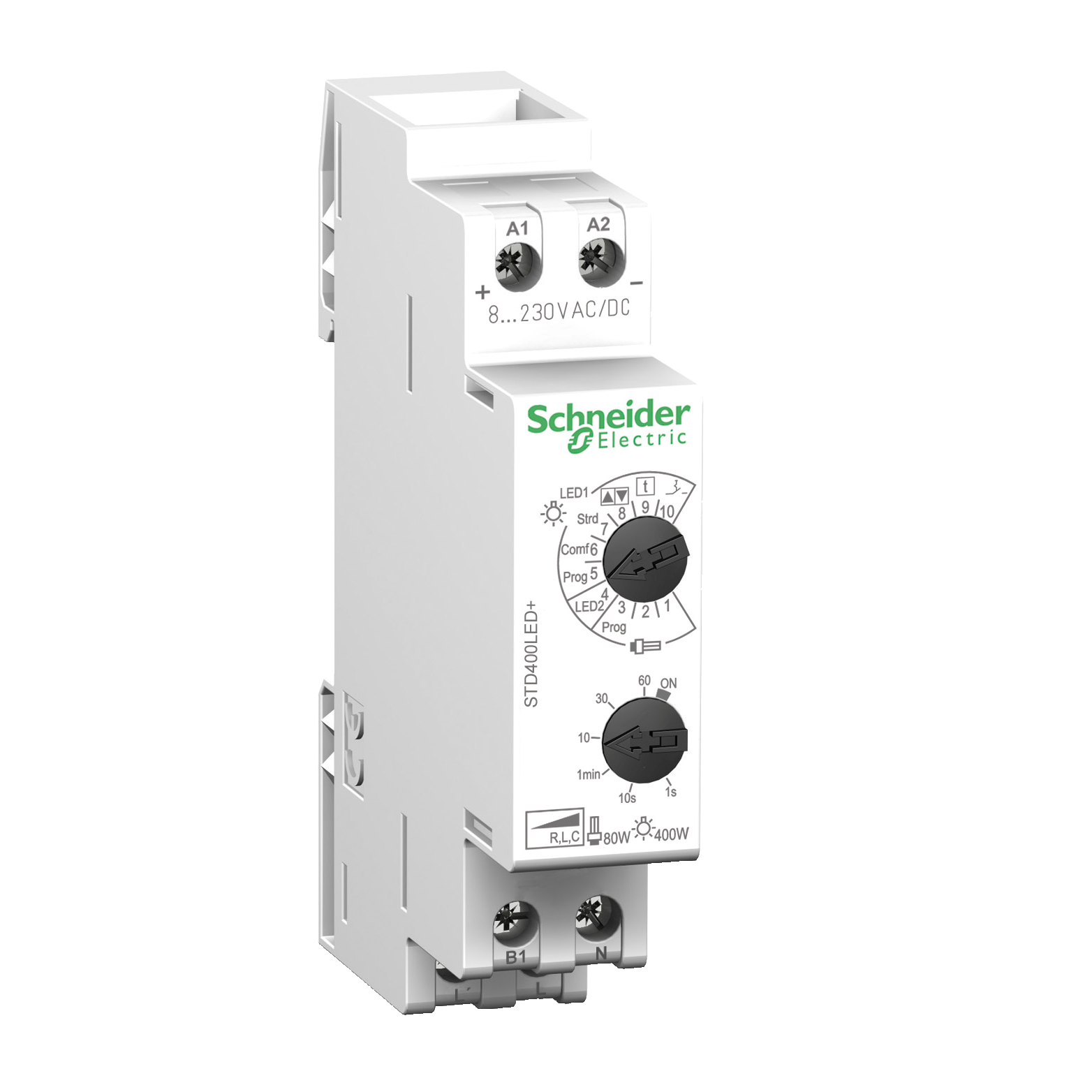

STD400LED+, 400 W. For switching and dimming incandescent lamps, HV halogen lamps, LV halogen lamps using dimmable wound transformers or electronic transformers, LEDs and compact fluorescent lamps. (Leading and trailing-edge phases). The universal dimmer automatically recognises the connected load. The enclosed diode modules can be used to implement 2 push-button operation, for example (push-button 1: on/dim up, push-button 2: off/dim down), or to retrieve up to 3 lightscenes. In addition, you can set a dimming time for different functions. Combinations of inductive and capacitive loads must not be connected. For installation on DIN rails TH35 according to EN 60715. Functions: - Automatic load detection. -Initial brightness can be saved individually. -Adjustable minimum brightness (required for ESL and LEDs). Multi-voltage input, e.g. for intercom systems. -Memory function in event of power failure. -Automatic electronic overload and excess temperature switch off. Dimming switch-on function. -Permanent ON function (test function). -Soft ON and soft OFF to protect lamps. -No minimum load required. Comfort setting with wake-up and snooze function (can also be deactivated). -Adjustable dimming speed (for automatic functions). One and two push-button operation for easy operation. -Up to 3 lightscenes can be retrieved via separate input. Central OFF/ON for max. 10 dimming channels or lightscene for max. 10 devices possible with one push-button. -Staircase lighting function with dimming off function in accordance with DIN 18015 - 2. Rresettable, long-term function. -Can be controlled by push-button or switch, e.g. for combination with presence detectors or time switches. Nominal voltage: AC 230 V, +10% / -15%, 50 Hz. Power consumption: 0.3 W. Standby power: 0.2 W. Incandescent lamp load: 400 W. Halogen lamp load: 400 W. Inductive transformers: 400 W. Electronic transformers: 300 W. Dimmable compact fluorescent lamps (CFL): 80 W. Dimmable LEDs: 60 W. Cable length: max. 100 m. Minimum load: none. Operating elements: Function switch, dimming time setting. IP protection rating: IP 20. Device width: 1 modules, approx. 18 mm. Version: 400 W.
