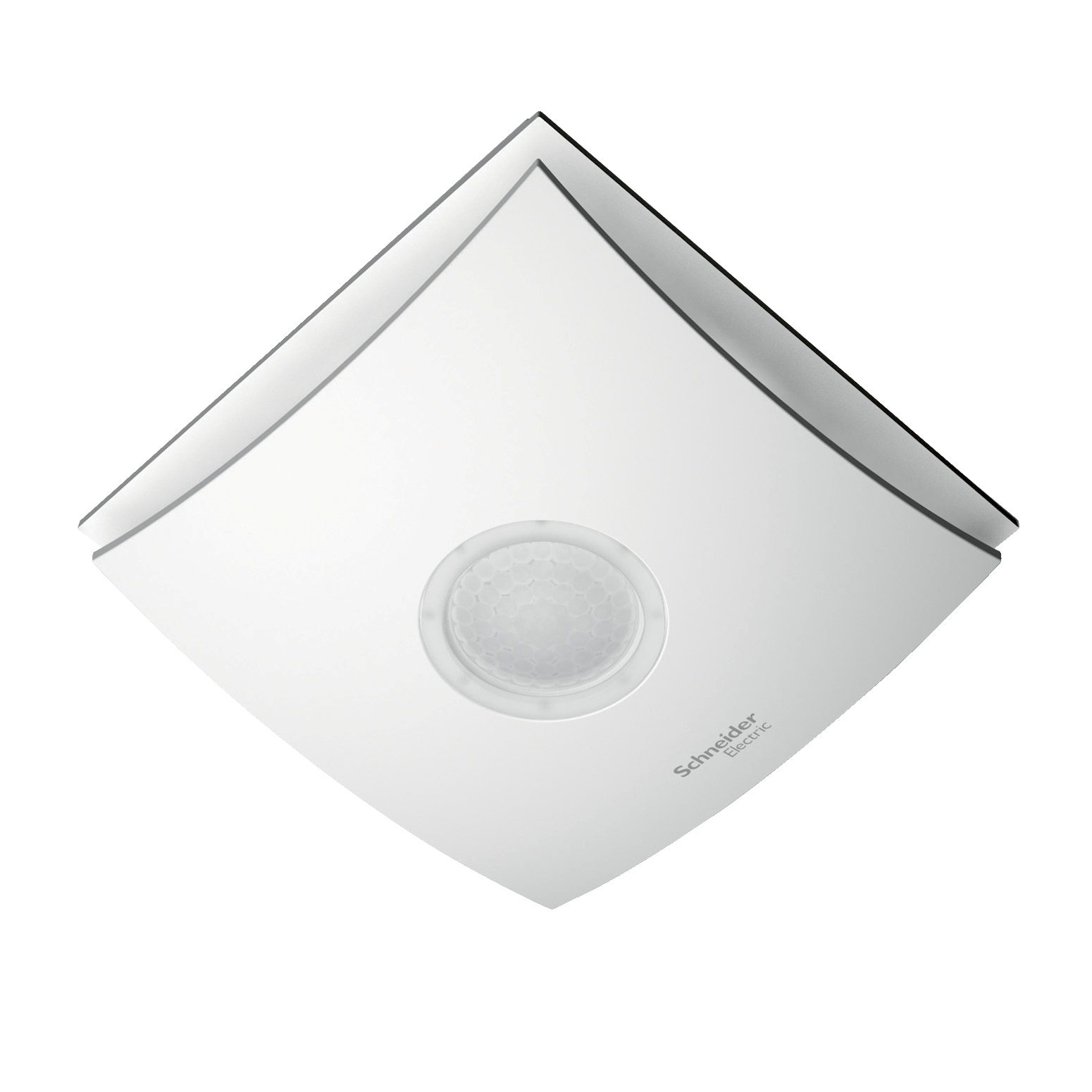

ARGUS Standard 360° indoor PIR. Electronic movement detector for indoor ceiling mounting. 360° surface monitoring. Efficient and discrete infrared sensor for all types of room in your home. Quick and easy settings for switch on time and light sensitivity levels. Attractive design to fit with your interior. Mains voltage: AC 220-240 V, 50 Hz. Max. switching current: 10 A, AC 220-240 V, cos Phi 0.6. Nominal capacity: Incandescent lamps AC 230 V: 1000 W. Halogen lamps AC 230 V: 1000 W. Halogen with electronic transformer: 315 VA. Halogen with iron core transformer: 500 VA. Fluorescent tubes: 250 VA. Capacitive loads (6 A test current): 28 µF. Capacitive loads (10 A test current): 21 µF. Compact fluorescent lamps: 4 x 23 W. Upstream fuse: 6 A. Stand-by current consumption: 2 W. Angle of detection: 360°. Range: radius of max. 7.4 m (at a mouning height of 2.4 m). Light sensitivity (lux setting): 5-2000 Lux. Time setting: approx. 3 s to approx. 10 min, lower tolerance 2-8 s. Switching modes: Auto mode. Connection: 3-wires, neutral conductor required. Light sensitivity (lux setting): 5-2000 Lux. Time setting: approx. 3 s to approx. 10 min, lower tolerance 2-8 s. Switching modes: Auto mode. Anschluss: 3-wired. Operating temperature: indoor use only. Type of protection: IP 20. EC directives: Low voltage directive 2006/95/EC and EMV-directive 2004/108/EC. Colour: white, RAL 9010. Dimensions (LxWxH): 135x135x43 mm. Net weight: 208g. Colour: white.
