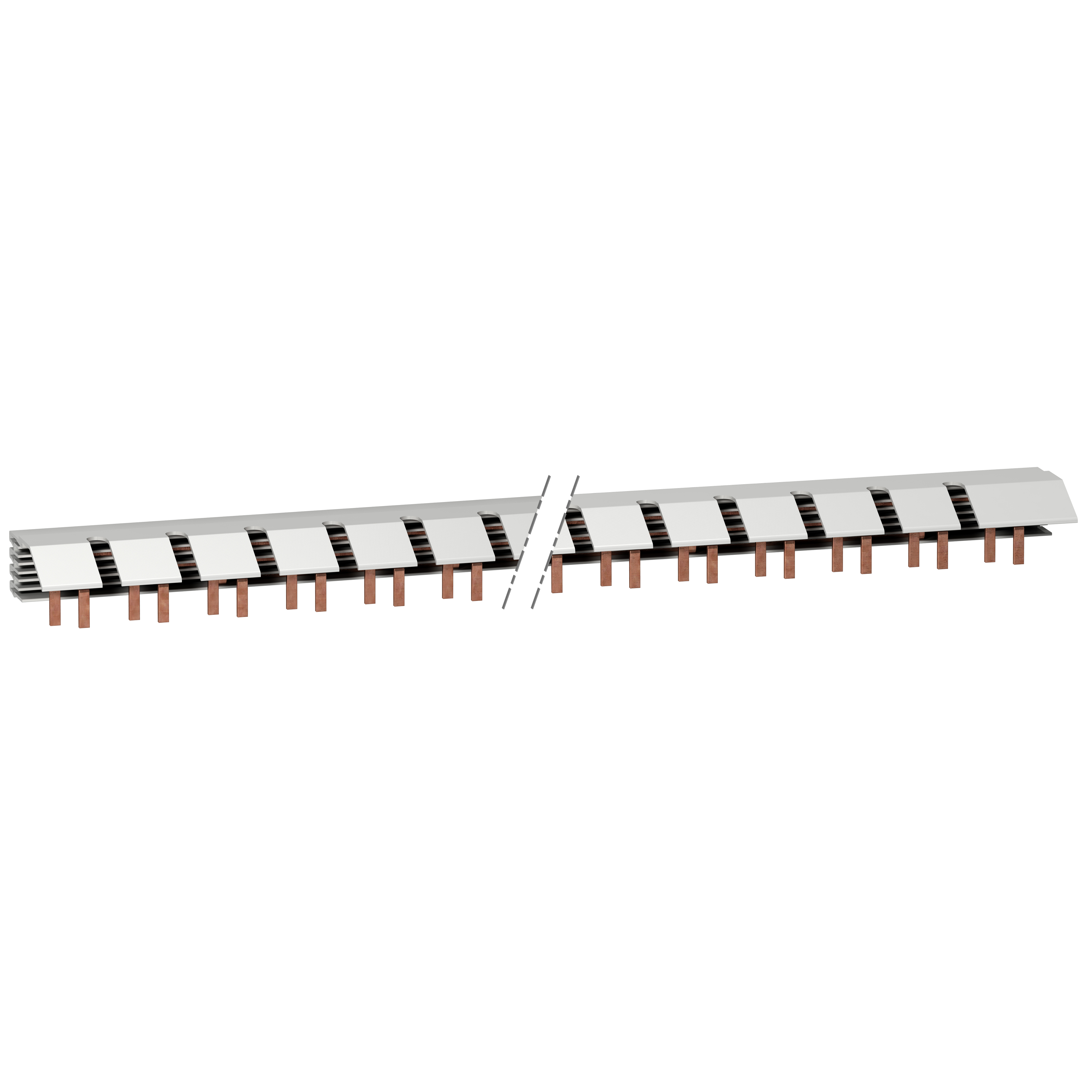

This Acti 9 horizontal comb busbar 18mm modules balanced with OF, SD auxiliary 9mm pitches for Acti 9 N40 is cuttable. It is dedicated to 3(Aux+N+L) installations. The type is Aux,N,L1-Aux,N,L2-Aux,N,L3 (Auxiliary, Neutral, Line). It is a set of 1 device. It is suitable for 22 devices (1P+N) with associated auxiliaries. The length is 1000mm.The total number of modules of 18mm is 56. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 80A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 230VAC for 1P+N, 400VAC for 3P+N. The color of the device is light grey RAL7035. The pollution degree is 3. The degree of protection is IP20. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC60439-1 standard.
