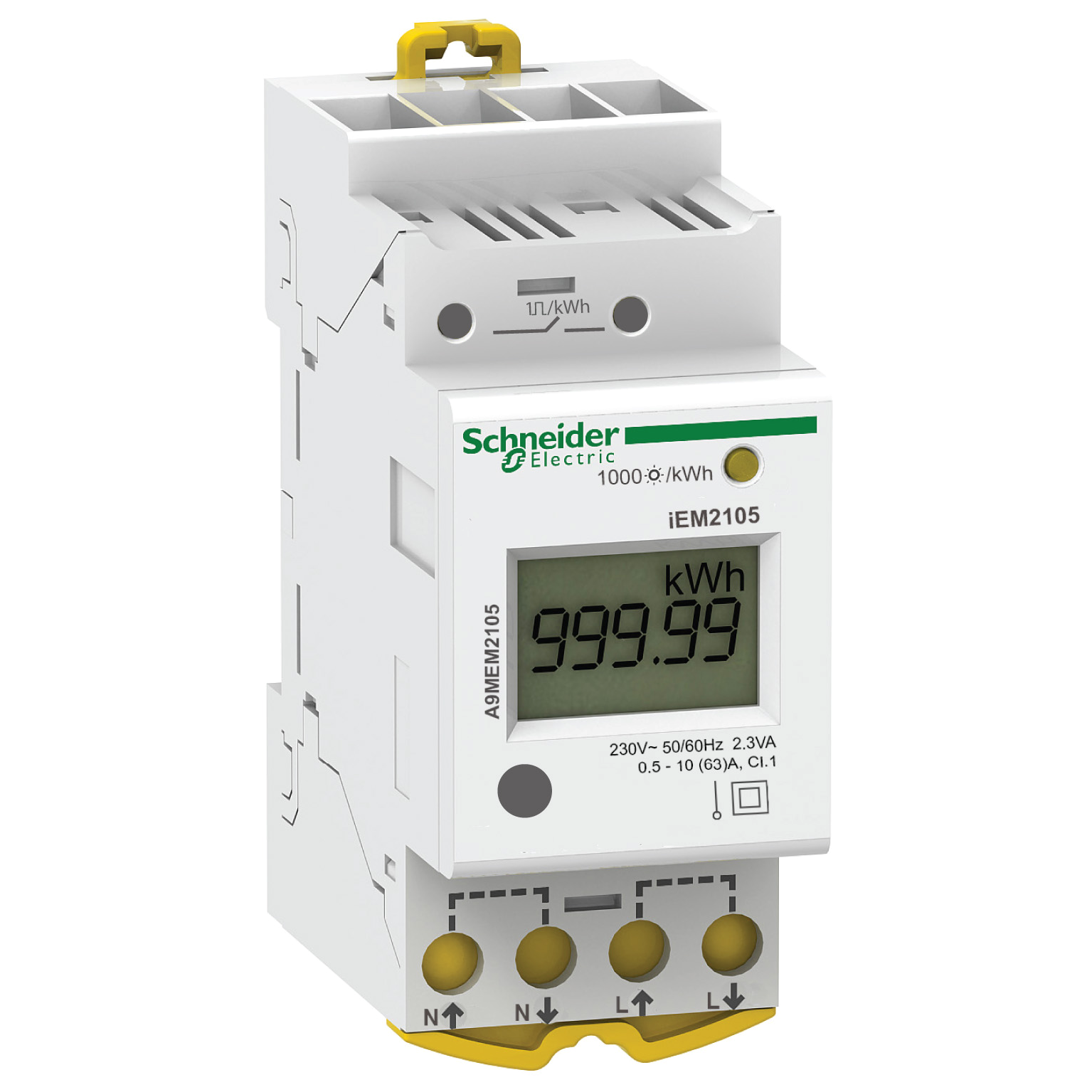

The Acti9 iEM2000 series energy meters offer an attractive range of single-phase DIN rail-mounted energy meters fitted for sub-billing or partial meter applications. This product family can be used to monitor power consumption for each floor, office sector, or unit and allocate energy cost for building management. It feature a 6 digits LCD display to display active and reactive energy or power measurements. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Suitable for a 230VAC network, with a supply voltage range of 195 to 253 VAC at 50Hz. Direct connect current measurement up to 45A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication protocol is Modbus RTU with 2 wire terminal support, a configurable pulse output is also available. You will have the possibility to switch between 2 tariffs thanks to the Modbus communication bus. Product dimensions are as follows: width 17.5 mm, depth 63 mm, height 90 mm. This version is compliant with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). Compatible with power management software to take advantage of the IoT digital power installation.
