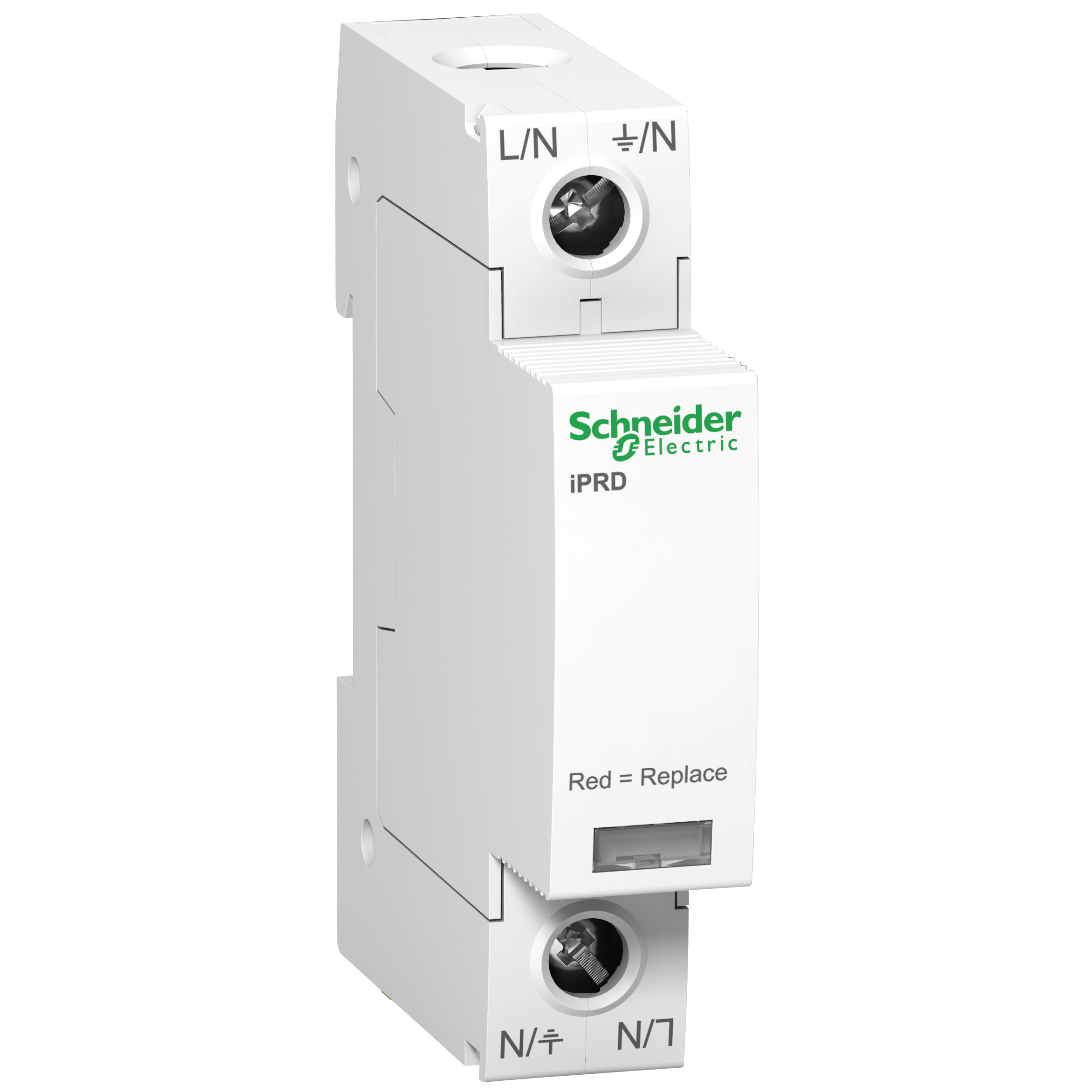

This Acti9 iPRD8 surge arrester protects 1P installations. It allows quick replacement of damaged cartridges. The Imax maximum discharge current is 8kA .The In nominal discharge current is 2.5kA. The iPRD8r ensures secondary protection of loads to be protected and is placed in cascade with the incoming surge arresters. This surge arrester is required when the loads to be protected are at a distance of more than 10 m from the incoming surge arrester. The Uc maximum continuous operating voltage in DM common mode (between phase and earth) is 350VAC. The Uc maximum continuous operating voltage in DM common mode (between phase and neutral) is 350VAC. The Up Voltage protection level in CM common mode (between phase and earth) is 1kV. The Up Voltage protection level in CM common mode (between earth and phase) is 1kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 85mm x (D) 69mm. The weight is 0.11kg. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standard.
