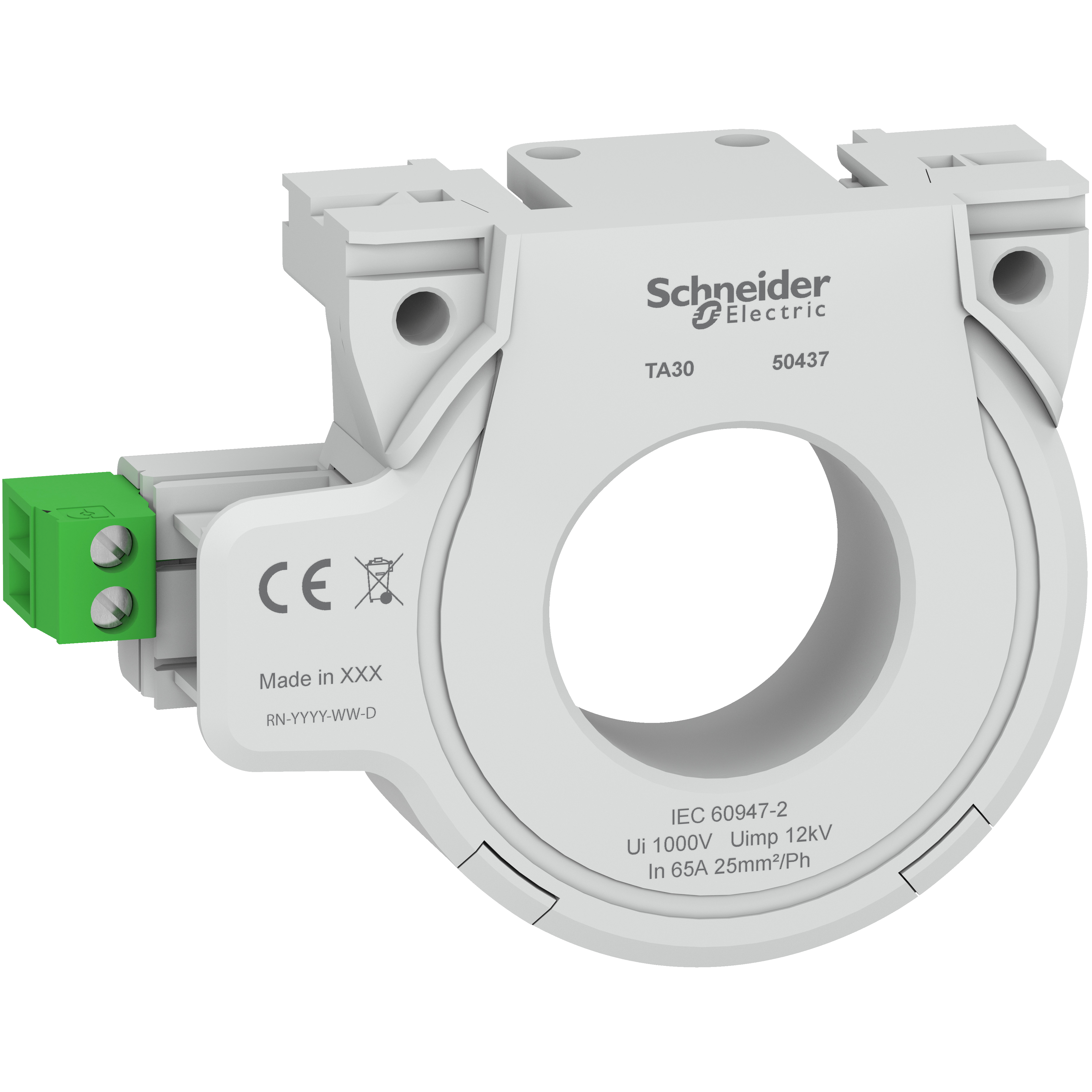

This toroid is dedicated to Vigilohm Insulation Fault locators, and to Vigirex residual current protection and monitoring relays. The inner diameter of the toroid is 30 millimeters and the weight is 0.120kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 15 millimeters. The maximum cross section per phase (R, S, T, N) is 25mm² for a copper conductor. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 65A for Vigirex monitoring and protection relays.
