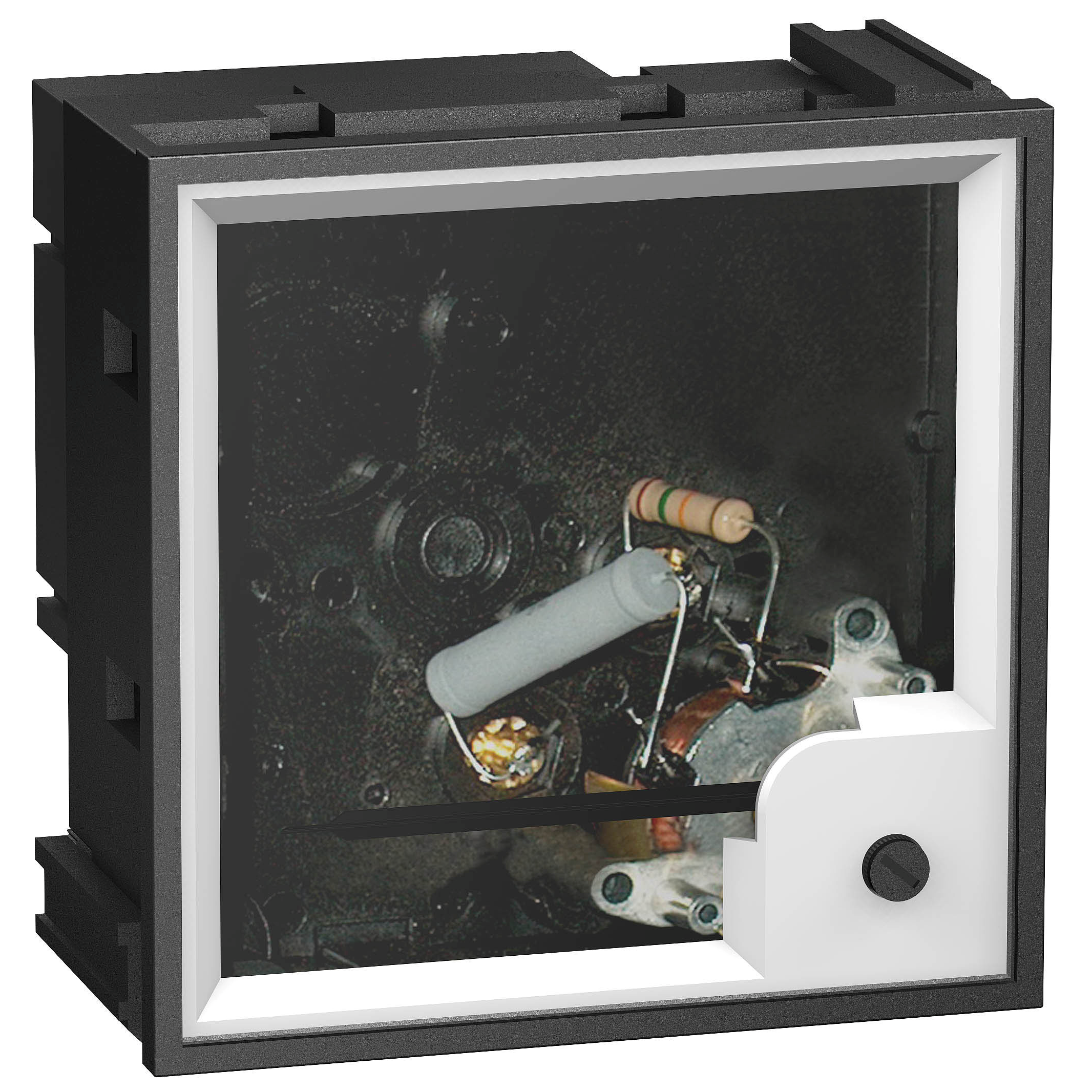

This instrument is aimed to be mounted on front face of monitoring switchboards. The ammeters measure in amps the current flowing through an electrical circuit. Suitable for standard application, this ammeter allow 1.3 times the nominal current. This analog device do not provide 5A current transformers nor the dial, both need to be ordered separately. The dial need to be ordered according to the connected current transformer ratio, several scales available. Accuracy class 1.5. Complient with standards IEC 60051-1, IEC 61010-1 and IEC 61000-4. The dimensions of the product are 72 mm in width, 72 mm in heigh and 75 mm in depth. please prepare a 68 x 68 mm cutout on the enclosure door.
