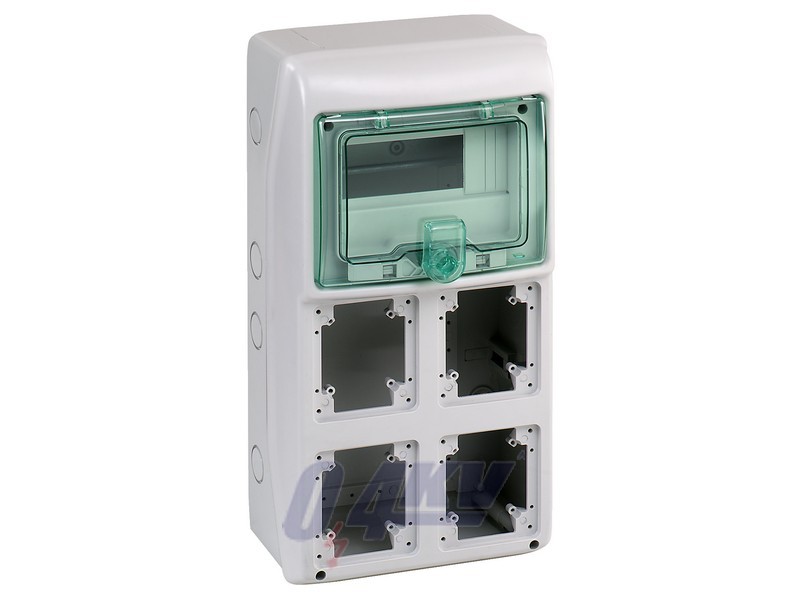

This Kaedra weatherproof enclosure is a surface mounted enclosure for plug and socket, up to 63A. It can accomodate all types of modular switchgear. There is a zone for industrial or domestic power outlets, buttons or indicator lights. It is intended for new or renovated installation in residential. It is composed of 1 row of 8 modules of 18mm.The dimensions are (W) 236mm x (H) 460mm x (D) 160mm. This product complies with IEC 61439-1 and 3, IEC 60670-1 and 24 standard. It is equipped with a back plate and a front cover with notch. An optional door can be installed over the cover. It is provided with removable DIN rail. The terminal block has 8 outgoers (4x10mm²). Wiring strap is also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 15W. According to EN/IEC 60529, the IP degree of protection is IP65. According to EN 50102, the IK degree of protection is IK09. The color of enclosure is light grey (RAL7035) with a transparent green wicket gate. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 750°C as per IEC 60695-2-1. It is halogen free. The operating temperature is -25°C to 60°C.
